Frequency synthesis

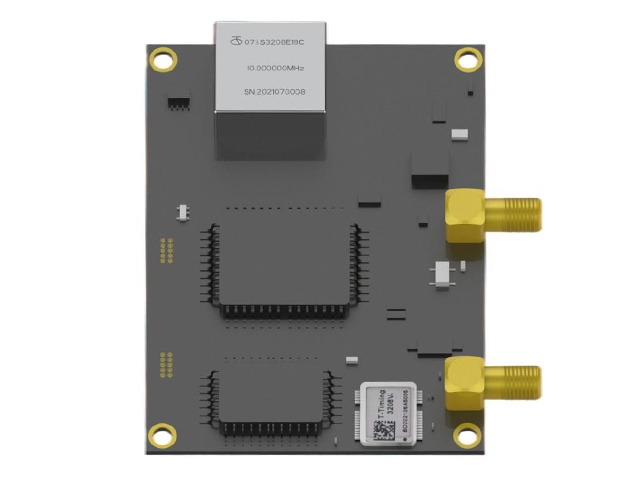

O80S
product feature：
Support Frequency: BeiDou B1,GPS L1,GLONASS L1, GALILEO E1
33 parallel tracking channels
Positioning accuracy: 2.5m, timing accuracy: 15ns(1sigma)
Hot start time: 1S; Cold start: 28S
Support multi-mode seamless switching
Size: 60*80*20mm
DC12V, steady state power <5W
Output: 10M, 1PPS
Share to：
Free Consultation
Tel：86-13808410450
performance parameter
| 项目 | 条件 | 标称值 | 单位 |
| 标称频率 | 25℃,Vcc=12V | 10 | MHz |
| 输出 | |||
| 波形 | 25℃,Vcc=12V | 正弦波 | |
| 电平 | 25℃,Vcc=12V | 5 | dBm |
| 负载 | 25℃,Vcc=12V | 50 | Ohm |
| 电源 | |||
| 电压 | Vcc | 12.0 | V |
| 启动电流 | Vcc=12V | 700 | mA |
| 稳定电流 | 25℃,Vcc=12V | 250 | mA |
| 启动时间 | 0.1ppm@25℃ | 180 | sec |
| 频率稳定度 | |||
| 阿伦方差 | /S | ﹤3E-11 | /S |
| 相位噪声 | |||
| 静态单边相位噪声 | 1kHZ | -155/-160 | dBc/Hz |
| 10kHZ | -160/-165 | ||
| 频率稳定度 | |||
| 频率vs温度 | 25℃ | 0.01 | ppm |
| 频率vs电源电压 | 25℃ | 5 | ppb |
| 天老化率 | 通电30天后 | 0.5 | ppb |
| 年老化率 | 0.05 | ppm |
absolute rating
| 电源电压 | -0.5~13.0V | 湿度 | 95% |
| 控制电压 | -1.0~9.0V | 振动冲击 | GJB360相关规范 |
| 存储温度范围 | -60℃~+90℃ | 总规范 | GJB1648-1993 |
application scenarios
pdf Specification
