In the anti-vibration crystal prices remain high in the market background, Changsha Tianqiong Electronic Technology re-launched industrial-grade DO33A type anti-vibration crystal - the same performance, the price dropped 30%! With a more affordable price, to provide high-grade anti-vibration protection for your equipment!
Basic description:
DO33A adopts high quality SC-cut quartz crystal, built-in low phase noise vibration circuit and high-precision temperature control circuit, which can generate low phase noise signal. Adopting the company's unique patented airbag vibration damping structure and anti-aging materials, it realizes the anti-vibration capability under any vibration conditions, especially for the occasions with strict requirements on phase noise at the far end.
Specification parameters:
Size: 33*30*20mm;
Output frequency: 100MHz
Operating temperature range: -40 degrees ~ +70 degrees;
Initial frequency accuracy: 0.5ppm;
Frequency temperature coefficient: 0.5ppm;
Phase noise: < -158dBc/Hz@1kHz

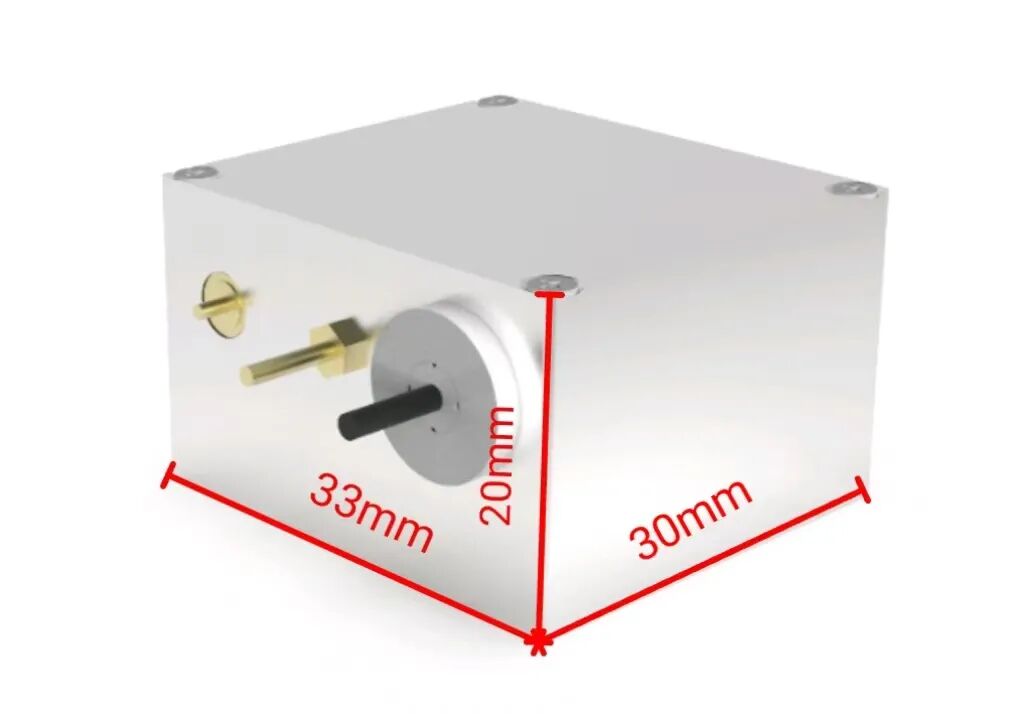

▲DO33A product picture
Why DO33A is the king of cost performance?
✅ Performance against international high-end products
◆ Remote super vibration resistance: phase noise ≤ -150dBc/Hz (1kHz) under three-axis vibration test, far beyond similar competitors;
◆ Wide temperature domain stability: static/dynamic phase noise under -40℃~+70℃ environment are ≤ -150dBc@1kHz, adapting to extreme environment;
◆ High-frequency customization freedom: support 10MHz~160MHz frequency flexible options to meet the needs of multiple scenarios.
✅ 30% direct price reduction, breaking the industry's high price barriers
We have upgraded the supply chain through localization and technological innovation to reduce costs, so that high-performance anti-vibration crystals are no longer out of reach! Under the same parameters, the price of DO33A is only 70% of similar products in the market, helping you to significantly reduce equipment costs!
✅ Full Scenario Verification

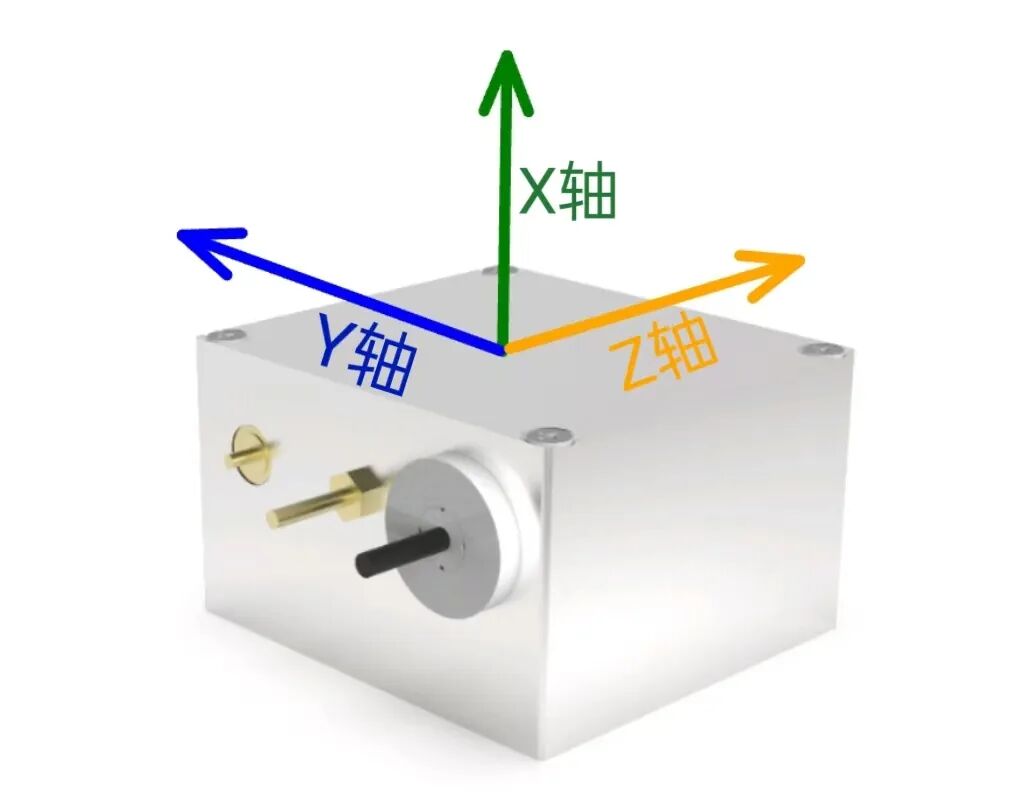

Vibration test curves: visualization of X/Y/Z axial vibration suppression effect.

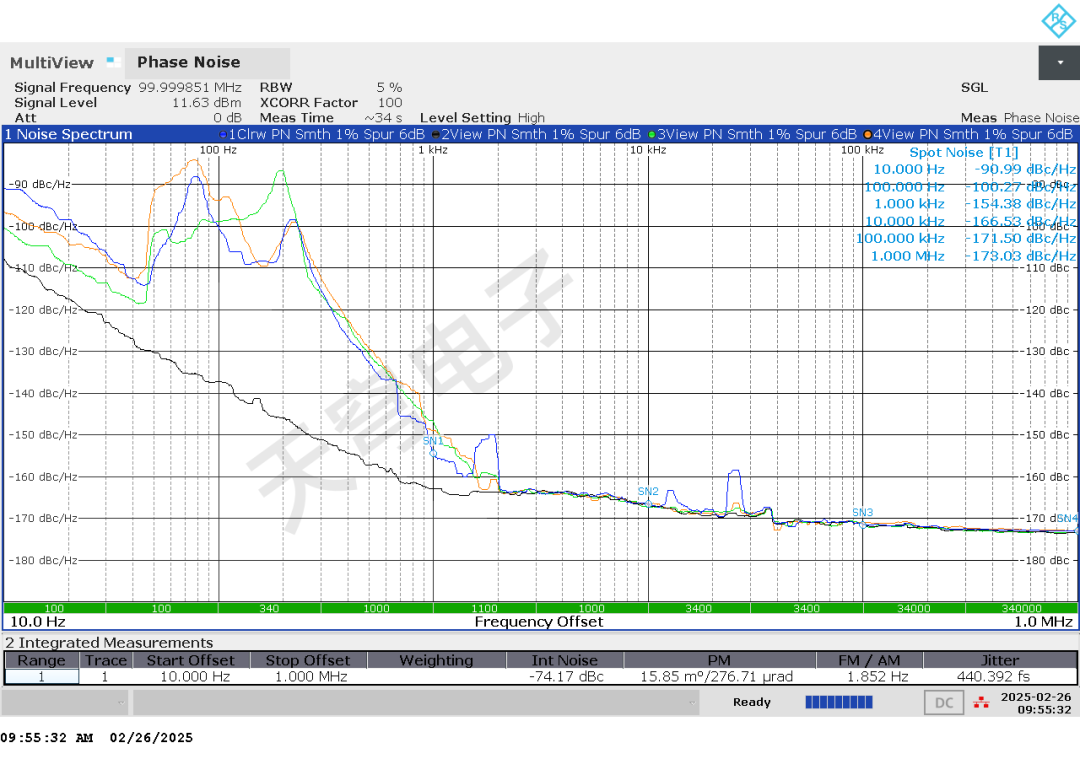

● Vibration curve one:
(Green - X-axis Blue - Y-axis Yellow - Z-axis;)
50-100Hz, 6dB; 100-1000Hz,0.02g; 1kHz~2kHz: -6dB
Vibration Power RMS: 5.76g

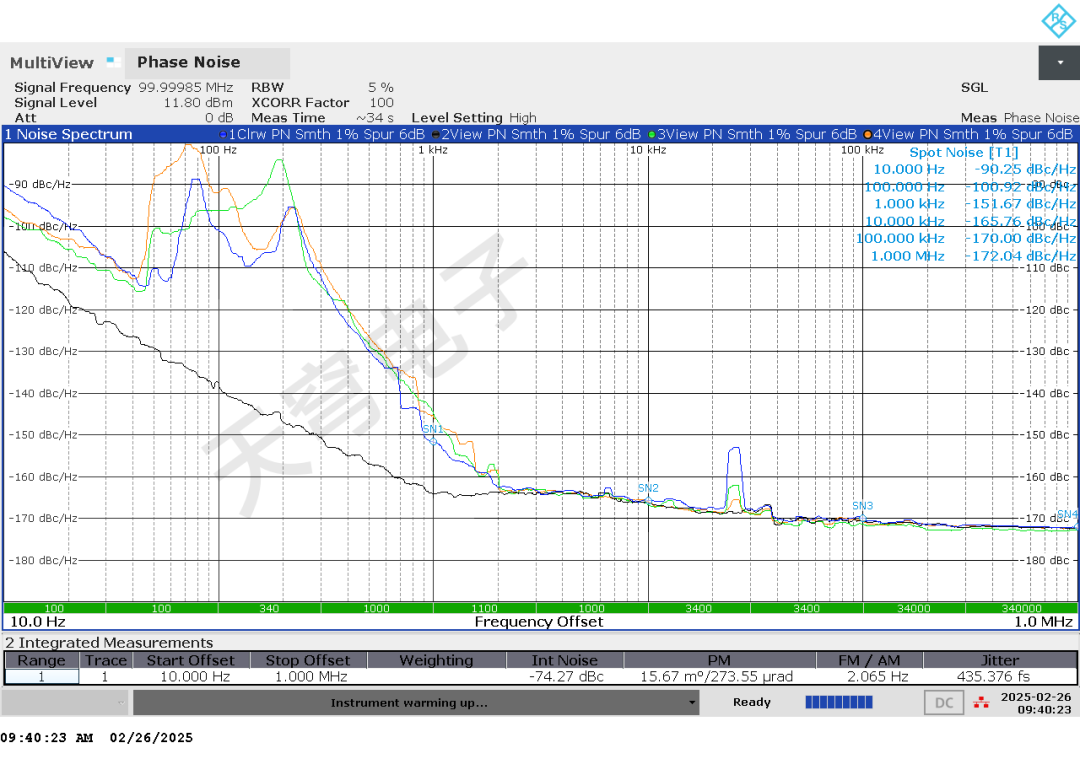

●Vibration curve II :
(Green-X-axis Blue-Y-axis Yellow-Z-axis;)
50-100Hz, 6dB;100-1000Hz,0.04g;1kHz~2kHz: -6dB
Vibration power RMS: 8.32g
Condition | Static Phase Noise (dBc/Hz) | Dynamic phase noise 0.02g (dBc/Hz) | Dynamic Phase Noise 0.04g (dBc/Hz) |
10Hz | -105 | -90.99 | -90.25 |
100Hz | -135 | -100.27 | -100.92 |
1kHz | -163 | -154.38 | -151.67 |
10kHz | -166 | -166.53 | -165.76 |
100kHz | -170 | -171.50 | -170.00 |
▲DO33A vibration test phase noise comparison (Y-axis data)
DO33A Core Advantages Summary
✅ Applicable Scenarios
1、 Low altitude monitoring equipment, UAV detection radar;
2、 Meteorological radar, geologic disaster forecasting radar;
3、 UAV load: UAV electronic information system;
4、 Industrial robots, vibration sensors, automation equipment;
5、automotive grade applications: new energy vehicle electronics, ADAS system anti-interference.

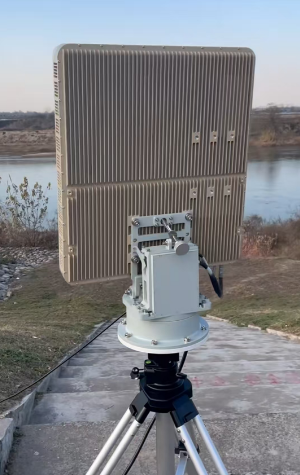

✅ Customer scene real shot
Has been successfully applied to UAV navigation, vehicle electronics, precision instruments and other fields, stability is highly recognized by customers!
✅ Customer Testimonials
Technical Director of XX UAV Enterprise
10:06
About Tianqiong Electronics
Changsha Tianqiong Electronic Technology Co., Ltd. is a professional time and frequency products supplier, dedicated to “provide accurate scale for sensing the world”, “Shutai” is a registered trademark owned by the company. The company focuses on high-precision frequency signal generation, maintenance and time transfer, not only for human daily life to provide standard time products, but also for high-precision physical measurements, wireless detection and broadband communications to provide frequency reference. Through unremitting efforts, continuous cultivation, research and development of advanced high-quality products, to provide accurate scale for human perception of the world.
